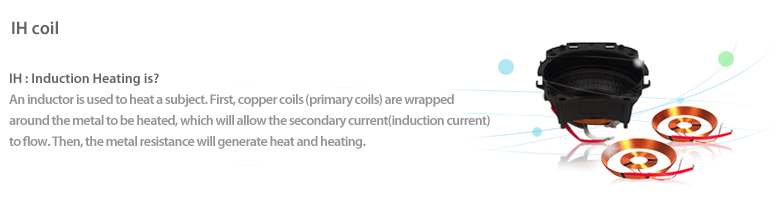

IH 전기압력 밥솥용
Coil Spec. Number of turns Electric properties
Wire Diameter Depth Interior Exterior Thickness R(mΩ) L(uH)
0.3/0.37 20 18 18 1.7~1.8 158.0 200
0.3/0.37 34 11 11 1.7~1.8 75.0 59.0
0.24/0.31 28 19 21 2.4 225.0 180.0
0.3/0.37 24 18 18 1.7~2.4 158.0 170.0
0.3/0.37 24 11 10 1.7~1.8 69.9 52.3
IH RANGE용
Coil Spec. Number of turns Electric properties
Wire Diameter Depth Interior Exterior Thickness R(mΩ) L(uH)
0.3/0.37 28 19 16 2.3 115.0 117.0
※ As for the any other feature for exclusive use, please inquire to nTop Corporation.
.
